4K PTZ Camera
ASRIH699-030-4630
  • Technical parameters
  • Form parameters

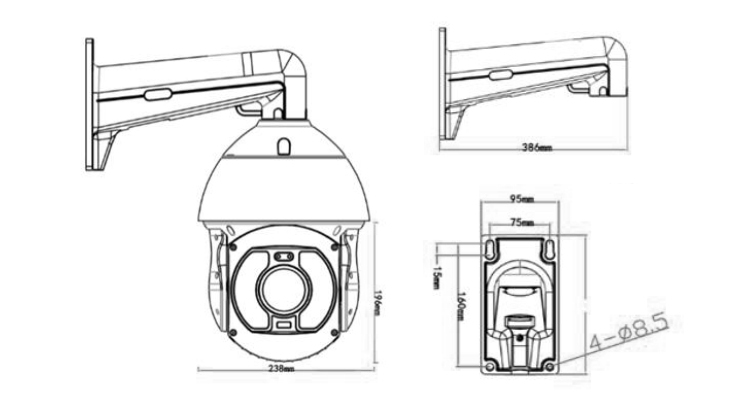

  • Dimensions
  • Download
Camera:
1/1.8" SONY STARVIS IMX334 CMOS Sensor, 50X optical zoom, f=6.0mm~180mm,
D/N( ICR-Cut), DWDR ,Color: 0.05Lux, B/W: 0.01Lux,0 Lux with IR
Support Smart Tripwire/Cross Fence Detection/Intrusion/Abandoned Objece/Fast-Moving/Parking Detection/Parking Detection/Crowd Gathering Estimation/Missing Object/Loitering Detection

Network Features:
1.Stream: 3840(H)x2180(V) 8MP/4K, 25FPS/30FPS:(3840×2160)
2.Support the P2P or Android, IOS
3.Support Onvif2.4
4.H.265 main profile/H.264 main profile & M-JPEG Dual-stream Encoding ,Three Simultaneous video streams
5.Standard SDK,CGI,easily to be integrated with other digital systems
6.Support a variety of network protocol such asTCP/IP/HTTP/NTP/IGMP/DHCP/UDP/SMTP/RTP/RTSP/ARP/DDNS/DNS

Dome Features:
1.High precision motor, precise control, smooth motion, stable rotation
2.10pcs High quality array LEDs+4pcs Laser LEDs, auto-switch to long/middle/close distance focus, 300M IR distance.
3.Support POE
4.SupportAudioIN+ DCout for Microphone
5.Support Alram in/out(Optional)
6.Support CVBS out(Optional)
7.360 degree continued rotation, Vertical Range -10°~90°, manual pan speed 0.05~240°/S, manual tilt speed 0.05~180°/S.
8.Built-in surge and lightning protection device, effectively preventing 8000V instantaneous current.
9.IP66 waterproof

Mode Name and Description PoE NetWork Camera IP 4K Samrt analysis PTZ Camera IR 300M night version Camera
ASRIH699T-030-4630
Camera Image Sensor  1/1.8" 8.0Mpixes Progressive Scan Sony IMX334  CMOS
Effective Pixels 8.0 Megapixels
Min. Illumination Color: 0.05Lux, B/W: 0.01Lux,0 Lux with IR
Ultra Low illumination
Zoom 30X optical , 4X Digital zoom,  f=6mm180mm 54°-1.4°(Wide-Tele)
Day/Night AUTO ICR Color to B/W
WDR Support
  OSD Display Time, Camera Name
IR Luminary   10pcs High quality array LEDs+4pcs Laser LEDs, auto-switch to long/middle/close distance focus, 300M IR distance.
Night vision distance  300m
Lamp control  CDS Control
Network Video Compression H.265/H.264/MJPEG
Streams 3streams
         Frame Rate Main stream:3840(H)x2180(V) 8MP/4K,
Sub-stream:25FPS/30FPS(3840×2160)
MJPEG:3840(H)x2180(V)
Bitrate CBR/VBR, bitrate1792, 2048, 4096, 6144, 8192Kbps
Audio Compression ACC, MPEG2-Layer2
P2P N/A
Protocols TCP/IPHTTPNTPIGMPDHCPUDPSMTPRTPRTSPARPDDNSDNS
Intelligent Video Analysis Guard position tracking, Cruise tracking, Perimeter Detection tracking, Line Detection tracking
Onvif Onvif 2.4
Network 10/100M Base-TX Ethernet, RJ45 Connector
Wifi N/A
Mini SD Card Support (Up to 128GB)
Alarm I/O Support Alram in/out (Optional)
Audio I/O Support Audio in+DC out for Microphone
CVBS Output Support (Optional)
Reset Button N/A
Dome Features CPU Type 32 bit ARM CPU
Address 0~255
Pan Range 360°
Tilt Range -5~90°
Manual pan speed 0.05-240º/S
Manual tilt speed 0.05-180º/S
Preset points 256
Patrol scan 4
L/R Scan 1
Horizontal Scan 1
Power-off memory Support
 General Work temperature –20~60
Work Humidity 0%~90% (Non condensing)
Power DC12V±10%; 4A/PoE
Consumption 25W
Protection level IP66 waterproof8000V lightning protection
Weight 5.5kg
