| Mode | Name and Description | H.265 5.0MP HD IP Analysis Night Video IR Bullet Camera |
| ASIH60-B35-5332 | ||
| Camera Specification | Media Processor | Hi3516A+SONY IMX335 |
| Image Sensor | 1/2.8” 5.0 megapixels Progressive Sony IMX335 CMOS | |
| Effective Pixels | 2592(H)x1944(V) | |
| Shuttle time | Auto (1/25 ~ 1/10000s) | |
| Min. Illumination | 0.01Lux/F1.2(Color) 0Lux/F1.2(B/W) | |
| Lens Specifications | 5MP 2.7-13.5MM VariFocal lens | |
| Day/Night Mode | Auto(ICR)/Color/B/W | |
| IR Distance | 24 PCS LEDs, up to 80m IR distance | |
| S/N Ratio | ≥50db(AGC OFF) | |
| White Balance | Auto | |
| Gain Control | Auto | |
| WDR | Digital WDR ≥80db | |
| Image | Compression | H.264 /H.265/MJPEG |
| Max Image Size | 2592(H)x1944(V) | |
| Stream | Dual-stream | |
| Frame Rate | Main Stream ：5MP,1-30fps ; 4MP/2MP,1-25fps | |
| Bit Rate | 32KB ~16Mbps; support VBR; CBR | |
| Text Overlay | Channel; Date & Time; Bit Rate | |
| Network | Data Storage | Video record; Picture format |
| Trigger | Manual; Automatic(motion detection; alarm; schedule; cycle ) | |
| Alarm data transmission | FTP; E-mail; Browser; CMS | |
| Protocol | TCP/IP/IUDP/IRTP/IRTSP/IRTCP/IHTTP/IDNS/IDDNS/IDHCP/IFTP/ INTP/IPPPOE/ISMTP/IUPNP | |
| Intelligent Video Analysis | Domain entry or exit detection,Virtual cordon,Item left or missing detection,Target count | |
| ONVIF | ONVIF 2.4 | |
| Max. User Access | 10 users; IE; Google; Firefox | |
| Smart Phone | Windows Mobile; iPhone; iPad; Android | |
| Interface | Audio in | Support |
| Audio out | Support | |
| BNC Video out | N/A | |
| Memory Card | N/A | |
| RS422/RS485 | N/A | |
| USB | Support (64G USB flash/WIFI/3G) | |
| Alarm in | N/A | |
| Alarm out | N/A | |
| IO Interface | Support (Reset ) | |
| General Parameters | Power Supply | DC12V/POE |
| Operation Temperature | -20℃ - +50℃ | |
| Operation Humidity | Less than 95%RH(no condensation) | |
| Weather Proof Rating | IP66 | |

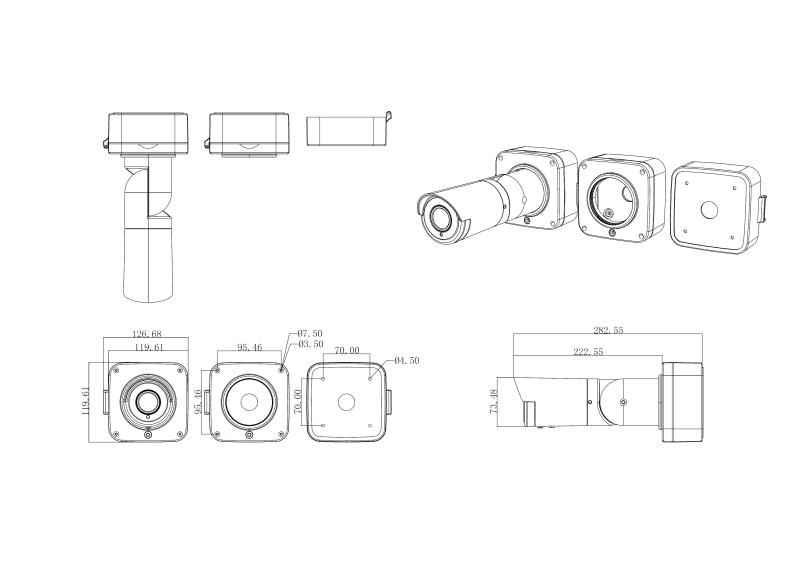

| Dimension | 65(W)X69(H)×190(D) mm | |
| Weight | 0.4Kg |
