ASIH40-B39-5327
  • Technical parameters
  • Form parameters

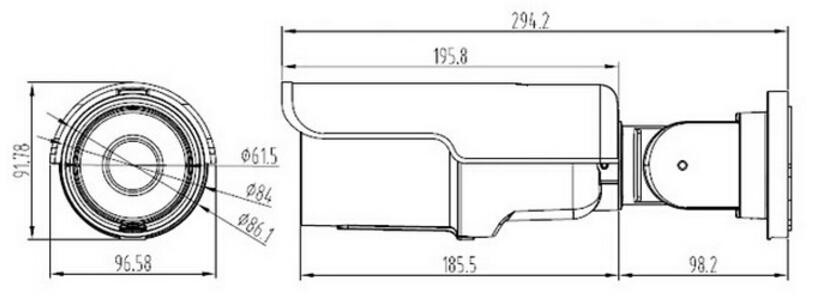

  • Dimensions
  • Download
Camera:
1/2.8” 2.0Megapixels Starlight Full Color Sony 307 CMOS ,Hisilicon Hi3516D Chipset, the highest resolution of 1920*1080, low illumination 0.001 Lux@F1.2 (color); Starlight full color super low lux ,High-definition Image, IR-CUT (day/night), H.264 or H.265 video coding, double stream, ONVIF 2.4, be compatible many NVR and platform management software.

Key Features:
1.1/2.8” 2.0Megapixels Starlight Full Color Sony 307 CMOS
2.Max 25/30fps@2.0 Megapixels (1920×1080)
3.Super low-illumination, 0.001 Lux@F1.2 (color)
4.H.264/H.265 & MJPEG dual-stream encoding
5.Privacy Mask, Motion Detection
6.Support Onvif 2.4 protocol， WDR≥80dB
7.3MP 2.7-13.5mm Vari Focal ,8pcs High power LEDs, up to 40m IR distance
8.Support mobile phone monitoring and P2P function
9.TF Card Slot
10.POE function
11.IP66 rating
12.Equipped with bracket
13.Supports Intelligent Video Analysis:Area entry or exit detection, virtual cordon, item legacy or loss detection, target count, flame recognition, sound anomaly detection, image quality anomaly detection, scene change detection

Mode Name and
Description		 H.265 2.0MP  Starlight Intelligent Video Analysis IP Bullet Camera
ASIH40-B39-5327
Camera Specification Media Processor HI3516D+Sony IMX307
Image Sensor 1/2.8” 2.0Megapixels Starlight Full Color Sony 307 CMOS
Effective Pixels 1920*1080
Shuttle time Auto (1/25 ~ 1/10000s)
Min. Illumination 0.001 Lux@F1.2 (color);
Lens Specifications 3MP 2.7-13.5mm Vari Focal
Day/Night Mode Auto(ICR)/Color/B/W
IR Distance 8pcs High power LEDs, up to 40m IR distance
WDR DWDR ＞80db
S/N Ratio ≥50db(AGC OFF)
Privacy Masking Support
Motion detect Support
Image Compression H.264/MJPEG/H.265
Max Image Size 1920(H)x1080(V)
Stream Dual-stream
Frame Rate Main Stream ：
1920*1080,1-25(30)fps  ; 1280*720,1-25(30)fps
Sub-stream :
704*576，1-25(30)fps   640*352,1-25(30)fps
640*480，1-25(30)fps   320*240,1-25(30)fps
Bit Rate 32KB ~16Mbps; support VBR; CBR
Text Overlay Channel; Date & Time; Bit Rate
Network Data Storage Video record; Picture format
Trigger Manual; Automatic(motion detection; alarm; schedule; cycle )
Alarm data transmission FTP; E-mail; Browser; CMS
Protocol TCP/IP/IUDP/IRTP/IRTSP/IRTCP/IHTTP/IDNS/IDDNS/IDHCP/IFTP/INTP/
IPPPOE/ISMTP/IUPNP
ONVIF ONVIF 2.4
Max. User Access 10 users; IE; Google; Firefox
Smart Phone Windows Mobile; iPhone; iPad; Android
Intelligent Video Analysis Area entry or exit detection, virtual cordon, item legacy or loss detection, target count, flame recognition, sound anomaly detection, image quality anomaly detection, scene change detection
Interface Audio in Support
Audio out Support
BNC Video out Support
Memory Card N/A
Alarm in Support
Alarm out N/A
IO Interface Support (Reset )
RS485 Support
General Parameters Power Supply DC12V
Operation Temperature -20℃ - +50℃
Operation Humidity Less than 95%RH(no condensation)
Weather Proof Rating IP66
Installation Equipped With Bracket
Dimension 294.2*96.58*91.78mm
Weight 0.8Kg
