ASIH36-D7-6050
  • Technical parameters
  • Form parameters

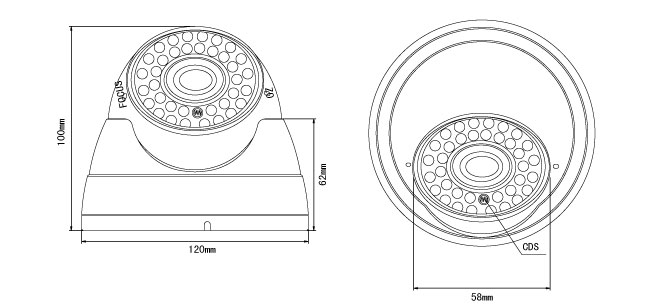

  • Dimensions
  • Download

Camera:
1/2.8" 5.0 Megapixels Progressive Scan sony imx335 CMOS, Mstar MS316D Chipset, the highest resolution of  2592*1944, low illumination 0.01 Lux@F1.2 (color); 0 Lux@F1.2 (black and  white ); IR-CUT (day/night), adapt Box, H.264 video coding, double stream, ONVIF 2.4, be compatible many NVR and platform management software.

Key Features:
1.1/2.8" 5.0 Megapixels Progressive Scan IMX335 CMOS
2.Max 20fps@5.0 Megapixels  (2592*1944)
3.Min. Illumination: 0.01 Lux@F1.2 (color); 0 Lux@F1.2 (black and white)
4. H.264/H.265 & MJPEG dual-stream encoding
5.Multiple network monitoring: Web viewer, Smart phone.
6.3MP 2.8-12mm Vari Focal Lens,6pcs LEDs, up to 40m IR distance
7.Privacy Mask, Motion Detection
8.Support Onvif 2.4 protocol
9.POE function
10.IP66 rating
11.Support Starlight

Mode Name and Description H.265 5.0MP Starlight IP Dome Camera
ASIH36-D7-6050
Camera Specification Media Processor MS316D+IMX335
Image Sensor 1/2.8” 5.0 megapixels Progressive Sony IMX335 CMOS
Effective Pixels 2592(H)x1944(V)
Shuttle time Auto (1/25 ~ 1/10000s)
Min. Illumination 0.01Lux/F1.2(Color) 0Lux/F1.2(B/W)
Lens Specifications 3MP 2.8-12mm Vari Focal Lens
Day/Night Mode Auto(ICR)/Color/B/W
IR Distance 6PCS LEDs, up to 40m IR distance
S/N Ratio ≥50db(AGC OFF)
White Balance Auto
Gain Control Auto
WDR Digital WDR ≥80db
Image Compression H.264/H.265/MJPEG
Max Image Size 2592(H)x1944(V)
Stream Dual-stream
Frame Rate Main Stream :2592*1944,(1-20)fps ;
3MP/2MP,(1-25)fps
Bit Rate 32KB ~16Mbps; support VBR; CBR
Text Overlay Channel; Date & Time; Bit Rate
Network Data Storage Video record; Picture format
Trigger Manual; Automatic(motion detection; alarm; schedule; cycle )
Alarm data transmission FTP; E-mail; Browser; CMS
Protocol TCP/IP/IUDP/IRTP/IRTSP/IRTCP/IHTTP/IDNS/IDDNS/IDHCP/IFTP/
INTP/IPPPOE/ISMTP/IUPNP
ONVIF ONVIF 2.4
Max. User Access 10 users; IE; Google; Firefox
Smart Phone Windows Mobile; iPhone; iPad; Android
Interface Audio in Support
Audio out Support
BNC Video out N/A
Memory Card N/A
RS422/RS485 N/A
USB Support (64G USB flash/WIFI/3G)
Alarm in N/A
Alarm out N/A
IO Interface Support (Reset )
General Parameters Power Supply DC12V
Operation Temperature -20 - +50
Operation Humidity Less than 95%RH(no condensation)
Weather Proof Rating IP66
Dimension 119.8*119.8*121.4mm
Weight 0.5Kg
