ASIH10-PT20-20
  • Technical parameters
  • Form parameters

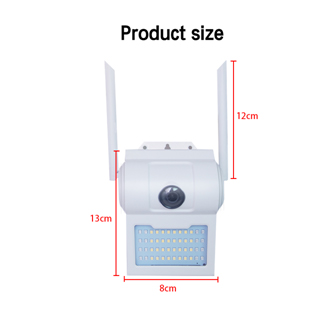

  • Dimensions
  • Download
Camera:
1.2.0 million high-performance CMOS sensor
2.4.0mm Megapixel lens
3.Color 0.1Lux@F1.2, black and white 0.01 Lux@F1.2
4.HD wide-angle lens
5.Backlight compensation, and auto gain control (AGC)
Network Features:
1.Main Stream: 1920*1080 @25fps
2.Support the P2P or Android, IOS
3.H.265 main profile/H.264 main profile & M-JPEG Dual-stream Encoding ,Three Simultaneous video streams
4.Standard SDK,CGI,easily to be integrated with other digital systems
5.Support a variety of network protocol such as TCP/IP/ HTTP/ NTP/ IGMP/ DHCP/ UDP/ SMTP/ RTP/ RTSP/ ARP /DDNS /DNS/ P2P

Form parameters
Mode Name and Description H.265 2.0MP HD IP Starlight Automatic fill light wireless Camera
ASIH10-PT20-20
Camera system structure Embedded RTOS design, dual-core 32-bit DSP (XM530AI), pure hard compression, watchdog,
sensor 2 million high-performance CMOS sensor
Color 0.1Lux@F1.2, black and white 0.01 Lux@F1.2;
Video processing H.265 video encoding, support dual stream, AVI format; support stream 0.1M ~ 8Mpbs adjustable; support frame rate 1 ~ 30 frames / second adjustable
Image output Main stream: 1920 * 1080 @ 25fps;
Substream: 704 * 576 @ 25fps
shutter 1/50 (1/60) seconds to 1/10000 seconds
Lens HD wide-angle lens
Visible distance Depending on the lens
Day and night conversion Support IR-CUT
Noise reduction Support 2D / 3D noise reduction
Wide dynamic Supports digital wide dynamics
Image settings Saturation Brightness Contrast adjustable through client or IE browser
Lighting mode Intelligent dual light, white light is always on, white light is off, infrared is always on, custom lighting time
Audio processing G.711A codec standard
Features Storage function TF card storage, cloud storage
waterproof level IP66 waterproof
Fill light 32 LED highlight dot matrix lights, 16 infrared lights
Smart alarm Motion detection, video loss, network cable disconnection, IP address conflict,
Common functions Dual stream, heartbeat, password protection
Business functions Support WEB configuration, OSD, motion detection; center alert after motion detection alarm, screen popup linkage; support MJPEG capture; support client remote  System monitoring software, MYEYE platform and other system applications; provide a complete SDK development kit
Network supporting agreement Supports RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP and other network protocols;
Network Interface 1 RJ45 10M / 100M adaptive Ethernet port
Other reliability Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours 65 ° C high temperature test is stable and reliable (including complete machine test)
Other interfaces SD card, reset button, power interface, RJ45 network interface, etc.
Power supply interface DC12V round head
Operating temperature -10℃~60℃
power supply DC12V±10%
Power consumption MAX 7W
Size (mm) 88 (length) * 76.18 (width) * 128 (height) (excluding antenna)
