4in1 PTZ Camera

ASHD680-027-20

1/3" CMOS Sensor, 27x, f=4.7mm～90.0mm, D/N( ICR-Cut), DWDR , Color: 0.1lux, B/W:0.01lux. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption.Imported array IR LED, auto adjust zoom according to different distance. 360 degree continued rotation, manual pan speed 0~240°/S, manual tilt speed 0~120°/S, preset speed 400°/S.1080P AHD output /1080P TVI output , CVI 1080P output ,CVBS output.

Technical parameters
Form parameters

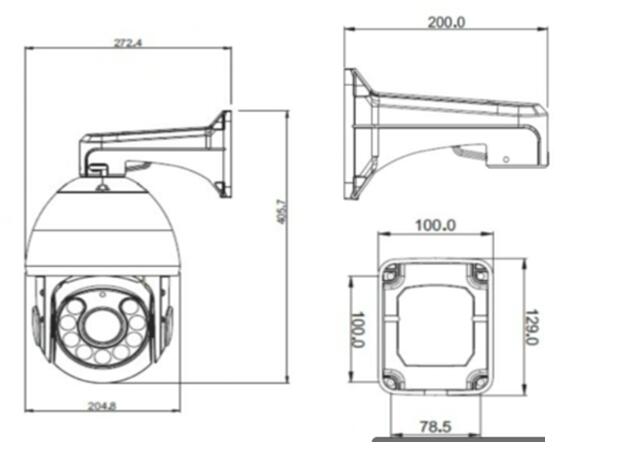

Dimensions
Download

Camera:
HD 1080P 2.0Mpixes
1/3" CMOS Sensor, 27x, f=4.7mm～90.0mm, D/N( ICR-Cut), DWDR , Color: 0.1lux, B/W:0.01lux.

Dome Features:
1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2. Imported array IR LED, auto adjust zoom according to different distance
3. IR range 150M
4. With digital temperature controlling system protecting IR LED
5. 360 degree continued rotation, manual pan speed 0~240°/S, manual tilt speed 0~120°/S, preset speed 400°/S.
6.1080P AHD output /1080P TVI output , CVI 1080P output ,CVBS output
7. 8 tours, DC12V

Mode	Name and Description	ASHD680-027-20 HD IR High Speed Dome Camera
Mode	Name and Description	ASHD680-027-20 Outdoor
Camera	Camera Name	AS-AH027 (27X D/N))
	Image Sensor	1/3" CMOS (Sony322)
	Effective Pixels	2.0 Mpixes
	Horizontal Resolution	1080P
	Min. Illumination	0.1Lux :Color/0.01 Lux:B/W
	Zoom	27X， f=4.7mm～84.6mm F1.6(W)～2.7(T)
	Day/Night	AUTO/COLOR/BW
	SNR	≥50dB(AGC OFF)
	WDR	DWDR
	White Balance	Auto/Indoor/Outdoor/Manual
	Electronic shutter	1/30s~1/10,000s
Dome Features	CPU Type	32 bit ARM CPU
	Luminary	Array Φ20 9pcs
	Night vision distance	150M
	Lamp control	Auto, Manual, by Zoom
	Address	0~255(soft address and hard address)
	Pan Range	360° continued rotation
	Tilt Range	0~90°(Auto Flip)
	Manual pan speed	0~240º/S
	Manual tilt speed	0~120°/S
	Preset speed	400°/S
	Actual preset Accuracy	±0.10°
	Preset points	255
	Operation OSD language	Chinese /English
	OSD Display	dome menu & camera menu adjustment
	Home position	Return to preset/scan/pattern/ if there is no command in the specified period.
	Operation recall	recall operation zone
	Tour	8
	Communication Protocol	Pelco D, Pelco P
	Intelligent Three dimensional Scan	Auto Pan & Tilt &Zoom /Manual
	Pattern group	8 Programmable(Pan/Tilt/Zoom )
	Speed adaption	Speed slows down automatically when zoom in
	Intelligent power off real time memory	automatic save functions setting ,automatic wake up tour function
	Camera Menu operation	support the operation of camera set up
	Manual continued Auto Scan	Non-limited position of manual continued Auto scan
General	Work temperature	External–35℃~55℃
	Work Humidity	0%~90% (Non condensing)
	Power	DC12V±10%; 5A
	Consumption	<50W
	Communication	RS-485
	Video Output	1080P AHD output /1080P TVI output , CVI 1080P output ,CVBS output
	Connection	BNC

Detail
