Explosion proof PTZ Camera

ASIH609L-020-3052

H.265 5.0MP HD Full Color Super low illumination IP High Speed Dome Camera,1/1.8” 5.0M Pixel SONY IMX178,20X optical zoom,Main Stream: 2592*1944,1-25(30)fps; 2304*1296,1-25(30)fps; 1920*1080,1-25(30)fps;

Technical parameters
Form parameters

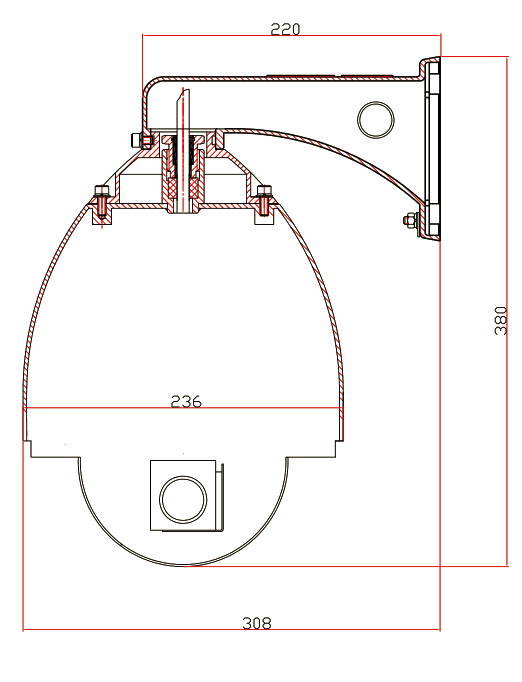

Dimensions
Download

Camera:
1.1/1.8” 5.0M Pixel SONY IMX178
2.20X optical zoom, auto focus
3.5.0MP available
4.True Day/Night, 3D DNR, Digital WDR
5.Backlight compensation, and auto gain control (AGC)

Network Features:
1.Main Stream: 2592*1944,1-25(30)fps; 2304*1296,1-25(30)fps; 1920*1080,1-25(30)fps;
2.Support the P2P or Android, IOS
3.Support Onvif2.4
4.H.265 main profile/H.264 main profile & M-JPEG Dual-stream Encoding ,Three Simultaneous video streams
5.Standard SDK,CGI,easily to be integrated with other digital systems
6.Support a variety of network protocol such as TCP/IP/ HTTP/ NTP/ IGMP/ DHCP/ UDP/ SMTP/ RTP/ RTSP/ ARP /DDNS /DNS/ P2P

Dome Features:
1.Corrosion Proof and Marine Corrosion stainless steel—by SUS316L material
2. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
3. Highest ESD protection against lightning and power surges.
4. 360° continued rotation, manual pan speed 0~300°,manual tilt speed 0~120°
5. Preset speed 400°/S, Preset Accuracy ±0.10°
6. Tilt range:0~90°(Auto flip)
7.Explosion-proof ,Marine Corrosion ,Rust Protection Stainliess steel PTZ , waterproof , weatherproof , IP68

Mode	Name and Description	H.265 5.0MP HD Full Color Super low illumination IP High Speed Dome Camera
Mode	Name and Description	ASIH609L-020-3052
Camera	Image Sensor	1/1.8” 5.0M Pixel SONY IMX178
	Effective Pixels	5.0 Mpixes
	Min. Illumination	Color：0.01Lux@(F1.6, AGC ON) B/W: 0.001Lux@(F1.6, AGC ON)
	Zoom	20X , f=4.7mm~94mm, D/N( ICR-Cut) ,F1.6~F3.0
	Day/Night	Day / Night / External control（IR Cut Filter）
	SNR	≥50dB(AGC OFF)
	WDR	Digital WDR，≥80dB
	AGC	Auto / Manual
	White balance	Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
	Digital noise Reduction	DNR,3DNR
	Shutter speed	1/2 - 1/20,000s
Network	Video Compression	H.265 Main Profile/H.264 Main Profile/M-JPEG
	Streams	Dual streams
	Frame Rate	Main stream:
		25921944,1-25(30)fps; 23041296,1-25(30)fps; 1920*1080,1-25(30)fps;
		Sub-stream:
		480640, 1-25(30)fps; 480 360 1-25(30fps 352288, 1-25(30)fps; 176144, 1-25(30)fps
		MJPEG:
		19201080, 1280720, Close
	Bitrate	CBR/VBR, bitrate：32Kbps~10Mbps variable
	Audio Compression	G711，PCM
	P2P	Android、IOS
	Protocols	TCP/IP/ HTTP/ NTP/ IGMP/ DHCP/ UDP/ SMTP/ RTP/ RTSP/ ARP /DDNS /DNS/ P2P
	Motion detect	Support
	Privacy Zone Masking	Support
	Onvif	Onvif 2.4
	Network	10/100M Base-TX Ethernet, RJ45 Connector
	Mini SD Card	Up to 32GB(Optional)
Dome Features	CPU Type	32 bit ARM CPU
	Address	0~255(soft address and hard address)
	Pan Range	360° continued rotation
	Tilt Range	0~90°(Auto Flip)
	Manual pan speed	0.1~300°/S
	Manual tilt speed	0.1-120º/S
	Preset speed	400°/S
	Actual preset Accuracy	±0.10°
	Preset points	128
	Other function	6Tour, Intelligent Three dimensional Scan, 3Pattern group ,Operation recall, Manual continued Auto Scan
	Intelligent power off real time memory	automatic save functions setting ,automatic wake up tour function
General	Work temperature	External–30℃~65℃
	Work Humidity	0%~90% (Non condensing)
	Power	AC24V±10%;2.5A
	Consumption	24W
