Home > Products > ASIH302-003-020

Products

ASIH302-003-020

Technical parameters
Form parameters

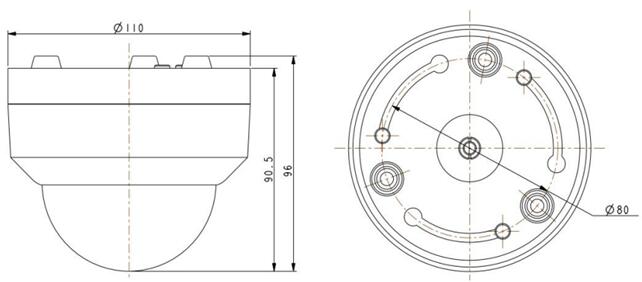

Dimensions
Download

Camera:
1.1/2.8” 2.0Mpiexls Sony Exmor 323
2. 3x Optical Zoom Lens(f=2.8～8mm), Auto Focus
3.2.0MP available
4.True Day/Night, 3D DNR, Digital WDR
5.Backlight compensation, and auto gain control (AGC)

Network Features:
1.Main Stream; 1920(H)x1080(P)@25fps/30fps
2.Support the P2P or Android, IOS
3.Support Onvif2.4
4.H.264 main profile & M-JPEG Dual-stream Encoding ,Three Simultaneous video streams
5.Standard SDK,CGI,easily to be integrated with other digital systems
6.Support a variety of network protocol such as TCP/IP, HTTP, DHCP, DDNS, RTP,RTSP, PPPOE ,SMTP, NTP, UPNP

Dome Features:
1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2. Imported array IR LED, auto adjust zoom according to different distance
3. Nano-tech IR LED: 42µ x 3pcs, IR Range: 30M
4. With digital temperature controlling system protecting IR LED
5.Built-in Surge and Lightning Protection Devices
6. Pan Range: 0°~355°, Pan Speed: 120°/s, Tilt Range: 0°~90°, Tilt Speed: 45°/s
7.Ingress Protection: IP66

Mode	Name and Description	ASIH302-003-020 2.5" Metal IP PTZ Camera
Mode	Name and Description	ASIH302-003-020
Camera	Image Sensor	1/2.8" Sony Exmor 323 Sensor
	Effective Pixels	2.0 Mpixes
	Min. Illumination	Color：0.1Lux@(F1.6, AGC ON) B/W: 0.01Lux@(F1.6, AGC ON)
	Zoom	3X Motorized zoom, f=2.8mm~8mm, D/N( ICR-Cut)
	Day/Night	Day / Night / External control（IR Cut Filter）,IR 30M
	SNR	≥50dB(AGC OFF)
	WDR	Digital WDR≥70dB
	AGC	Auto / Manual
	White balance	Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
	Digital noise Reduction	DNR, 3DNR
	Shutter speed	1/25s~1/50,000s , 1/30s~1/60,000s
Network	Video Compression	H.264 Main Profile/M-JPEG
	Streams	Dual streams
	Frame Rate	Main stream:
		19201080, 1-25(30)fps; 1280720, 1-25(30)fps
		Sub-stream:
		480640, 1-25(30)fps; 480 360 1-25(30fps 352288, 1-25(30)fps; 176144, 1-25(30)fps
		MJPEG:
		19201080, 1280720, Close
	Bitrate	CBR/VBR, bitrate：32Kbps~10Mbps variable
	Audio Compression	G711，PCM
	P2P	Android、IOS
	Protocols	TCP/IP, HTTP, DHCP, DDNS, RTP,RTSP, PPPOE ,SMTP, NTP, UPNP
	Motion detect	Support
	Privacy Zone Masking	Support
	Onvif	ONVIF Hikvision XM jovision personal protocol
	Network	10/100M Base-TX Ethernet, RJ45 Connector
	Mini SD Card	Up to 64GB(Optional)
IR Parameters	Luminary	42µ x 3pcs
	Night vision distance	30M
	Lamp control	Auto, Manual, by Zoom
Dome Features	CPU Type	32 bit ARM CPU
	Address	0~255(soft address and hard address)
	Pan Range	0°~355°, Horizontal
	Tilt Range	0°~90°, Vertifcal
	Manual pan speed	30º/S
	Manual tilt speed	20°/S
	Preset speed	100°/S
	Actual preset Accuracy	±0.10°
	Preset points	128
	Intelligent power off real time memory	automatic save functions setting ,automatic wake up tour function
General	Ingress Protection	IP66
	Power Supply	DC12V±10%
	Working Environment	-10°C~+50°C / Less than 95%RH (no condensation).
	Protection grade	TVS3000V lightning protechtion ,surge protection and voltage transient protection weather proof
	Weight	450g.
