产品展示

无线网络球机

观看大图

ASIHPT492-020-53

技术参数
表格参数

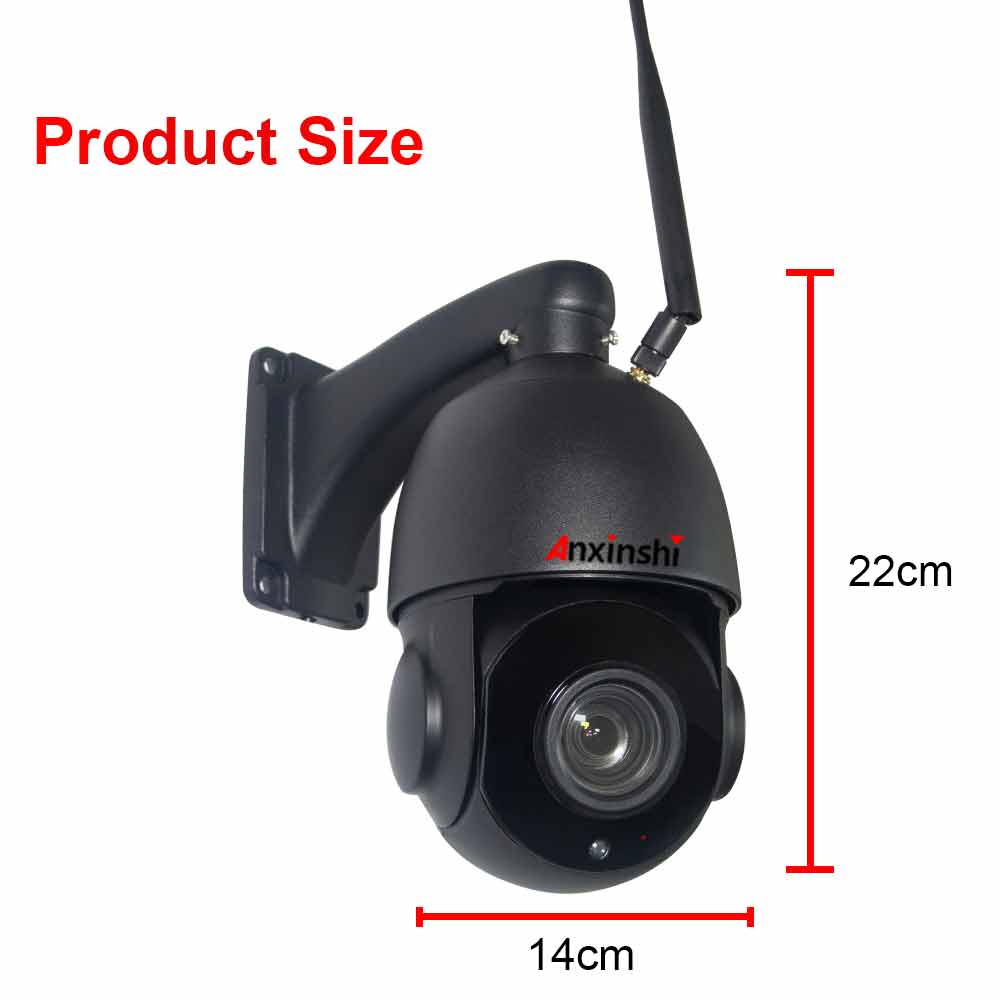

尺寸图
资料下载

Camera:
1.1/2.8” 5.0Megapixels Sony IMX335 Sensor
2. 30X optical zoom, auto focus
3.5.0MP
4.True Day/Night, 3D DNR
5.Backlight compensation, and auto gain control (AGC)
Network Features:
1.Main Stream: (2560*1920)30fps
2.Support the P2P or Android, IOS
3.Support Onvif2.4
4.H.264 main profile & M-JPEG Dual-stream
5.Standard SDK,CGI,easily to be integrated with other digital systems
6.Support network server: DHCP,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAIL,IP authority,IP Searching 、Alarm center and etc;
7. Support software platform ;XM , Hikvision , Milestone
8 compatible NVR，Hikvsion , DaHua ,Aevisin, XM, JOVISION, TVT
WFI Features
1. IEEE 802.11
2. 2.4 GHz

Dome Features:
1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2. With 8 EA array Led, IR distance 60M
3. 355 degree continued rotation, manual pan speed 0.1~45°/S, manual tilt speed 0.1~45°/S, preset speed 120°/S.

Form parameters
Mode	Name and Description	H.265 5.0MP Wifi low illumination IR Speed Dome Camera
Mode	Name and Description	ASIHPT492-020-53
Camera	Image Sensor	1/2.8” 5.0Megapixels Sony IMX335 CMOS
	Effective Pixels	5.0 Mpixes
	Min. Illumination	Color：0.1Lux@(F1.6, AGC ON) B/W: 0.Lux
	Zoom	30X , f=4.7mm~94mm, D/N( ICR-Cut)
	Day/Night	Day / Night / External control（IR Cut Filter）
	SNR	≥50dB(AGC OFF)
	WDR	Super WDR，≥80dB
	AGC	Auto / Manual
	White balance	Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
	Digital noise Reduction	DNR,3DNR
	Shutter speed	1/1-1/10,000s
Network	Video Compression	H.265 Main Profile/M-JPEG
	Streams	3 streams
	Frame Rate	Main stream:
		25601920, 1-25(30)fps; 1280720, 1-25(30)fps
		Sub-stream:
		480640, 1-25(30)fps; 480 360 1-25(30fps 352288, 1-25(30)fps; 176144, 1-25(30)fps
		MJPEG:
		25601920, 1280720, Close
	Bitrate	CBR/VBR, bitrate：96k~6M bps variable
	Audio Compression	G711，PCM
	P2P	Android、IOS
	Protocols	TCP/IP/ HTTP/ NTP/ IGMP/ DHCP/ UDP/ SMTP/ RTP/ RTSP/ ARP /DDNS /DNS/ P2P
	Motion detect	Support
	Onvif	Onvif 2.4
	Network	10/100M Base-TX Ethernet, RJ45 Connector
	Mini SD Card	Up to 64GB(Optional)
Dome Features	CPU Type	32 bit ARM CPU
	Address	0~255(soft address and hard address)
	Pan Range	355° continued rotation
	Tilt Range	0~90°(Auto Flip) bottom 180°(Auto Flip)
	Manual pan speed	0.1~45º/S
	Manual tilt speed	0.1~45°/S
	Preset speed	100°/S
	Actual preset Accuracy	±0.10°
	Preset points	256
	Other function	8 Tour, Intelligent Three dimensional Scan, 8Pattern group ,Operation recall, Manual continued Auto Scan
	Intelligent power off real time memory	automatic save functions setting ,automatic wake up tour function
General	Work temperature	External–10℃~60℃
	Work Humidity	0%~90% (Non condensing)
	Power	DC12V±10%;2A
	Consumption	30W
